Advanced turbo blower technology

High-Speed Gearless Turbo Blowers

Lone Star Turbo DT Series turbo blowers deliver efficient, oil-free performance for demanding air and gas applications, with full U.S. factory support from Houston, Texas

Get More Information

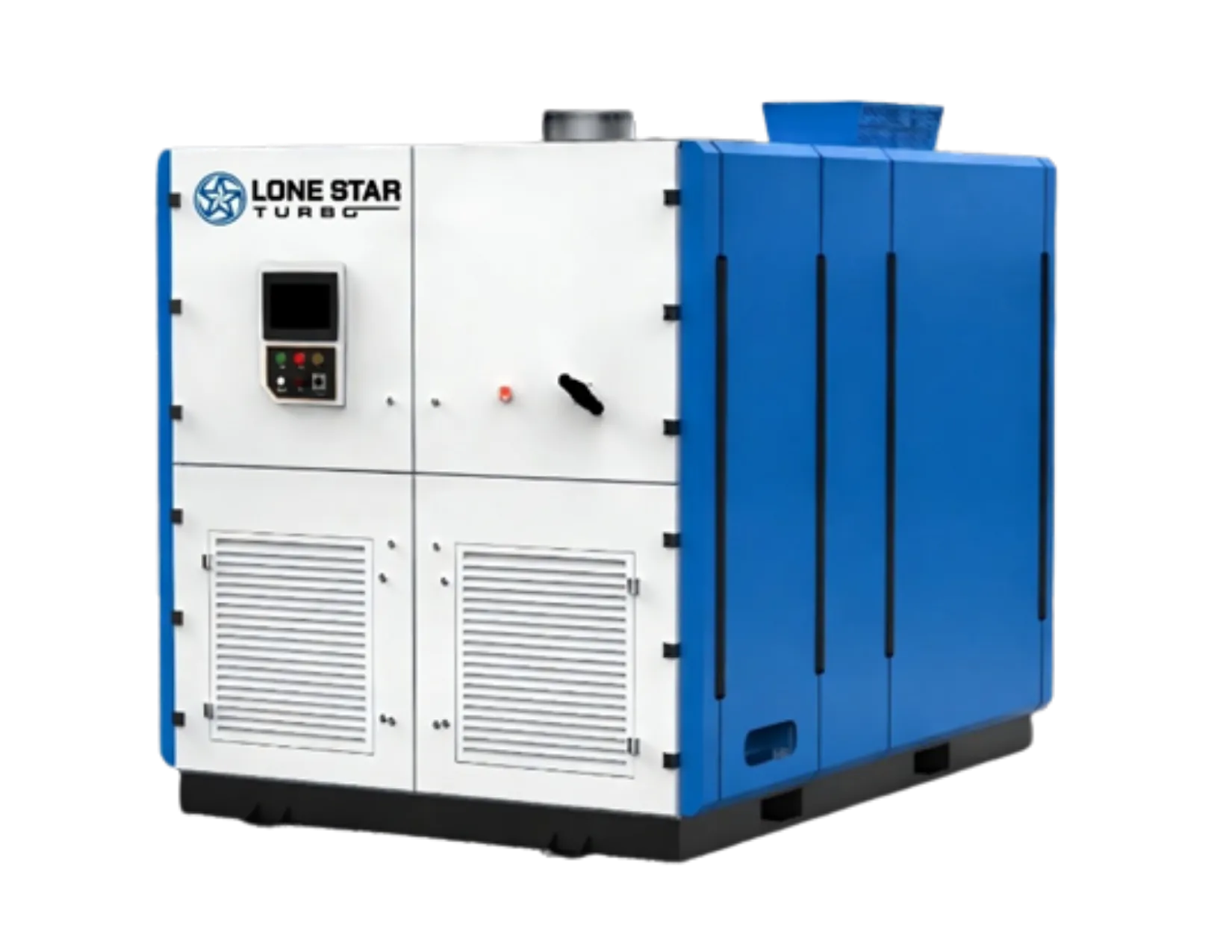

Lone Star Turbo High Speed Gearless Turbo Blower Mag Bearing

Efficient, Oil-Free Operation

DT Series Lone Star turbo blowers are completely oil-free and grease-free. Each package uses a high-speed permanent magnet motor with either air foil bearings or magnetic levitation bearings.*

A compact, efficient, low-maintenance design that reduces operating costs and simplifies installation.

Energy
Efficient

20 – 40% more efficient that outdated blower techologies

Quiet
Operation

75 – 85 dBA
Sound Levels

Easy
Installation

Pre-packaged system with blower, VFD, controls, and filtration

Wide Power Range

25 – 3,000 Horsepower
480V – 4,160V Input Voltage

Compact Footprint

67% Smaller Footprint from traditional blowers

Low Maintenance

No lubrication, alignment, or scheduled maintenance

Fully
Tested

ISO 9001, UL 508A Certified
BABA Compliant

Oil & Grease
Free

High-Speed permanent magnet motor, with air foil or magnetic levitation bearings.

Core Technology Built for Performance

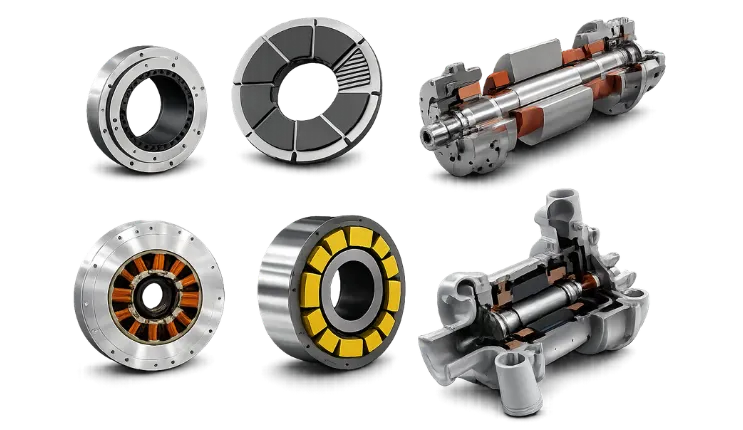

Assortment of industrial machine parts, including bearings, seals, rotors, stators, and a cutaway gearbox designs on a black background.
  • High-Speed Permanent Magnet Motor delivers exceptional efficiency and performance
  • Precision Aerodynamic Impeller maximizes airflow while minimizing energy consumption
  • Direct-drive Design eliminates the need for gears, reducing maintenance and improving reliability
  • Compact Package Design saves valuable floor space and simplifies installation
  • Air Foil or Magnetic Levitation Bearing Technology featuring oil-free, low maintenance operations, with reduced wear, superior performance and enhanced reliability.
  • 500+ HP Models feature advanced magnetic bearings for demanding industrial applications
  • Engineered for Long-Term Dependability in continuous-duty air and gas service applications
  • Air-Cooled or Water-Cooled Configurations available to match specific application and operating requirements

Permanent Magnet Motor Efficiency

High-Speed Performance. Lower Energy Consumption

PMSM Motor technology provides high efficiency, especially at partial load, while allowing operation at higher speeds than traditional induction motor designs. This improves overall system performance and reduces energy consumption across a wide operating range.

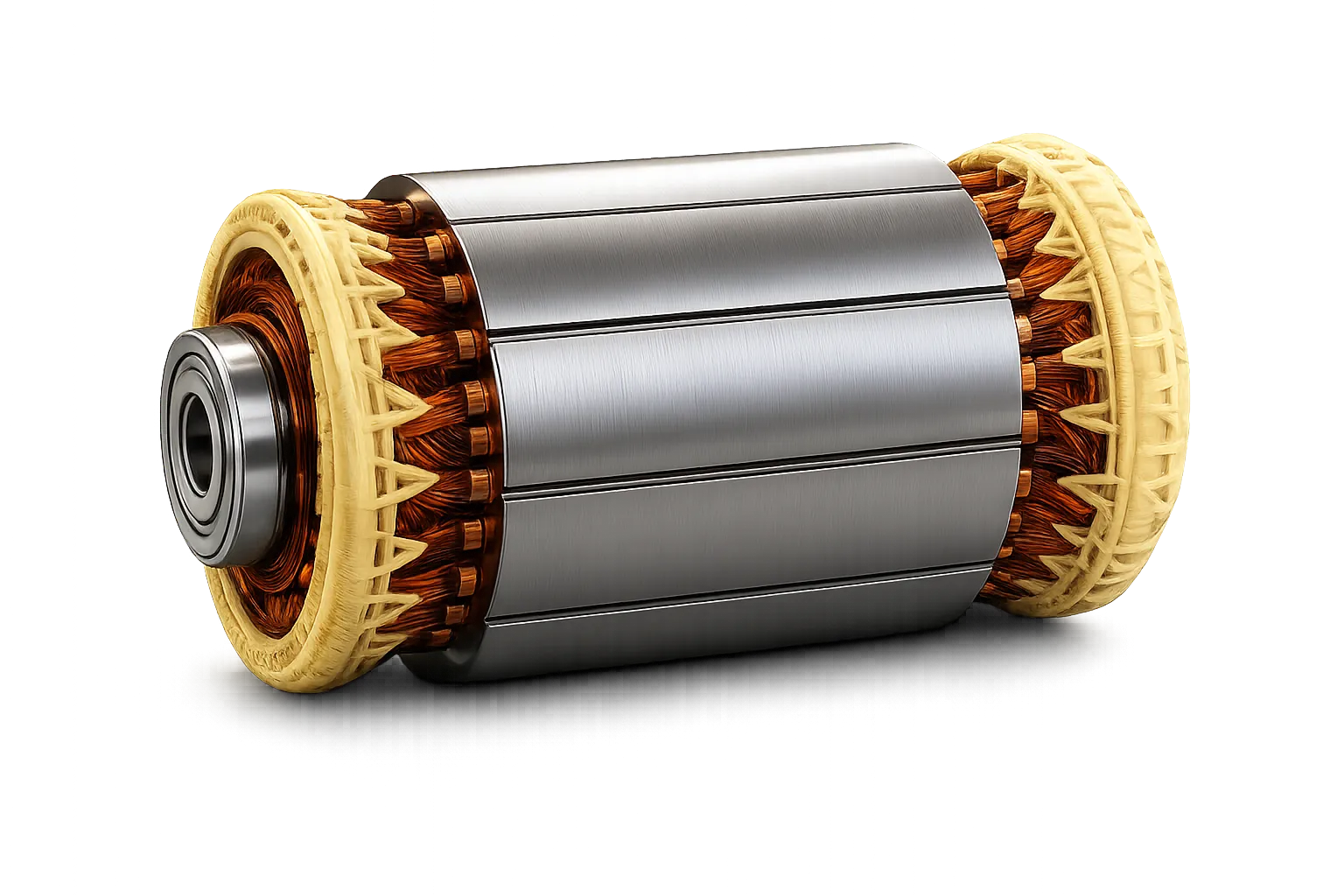

Rotor of an electric motor showing copper windings and laminated steel core with beige end rings

The Power Behind DT Series Efficiency

Built for Real-World Operating Conditions

Permanent magnet motors eliminate many of the components found in traditional blower drive systems, resulting in a more compact design with fewer wear points. Combined with advanced controls and high-speed operation, they provide precise performance across a wide range of process conditions.

Rotor of an electric motor showing copper windings and laminated steel core with beige end rings

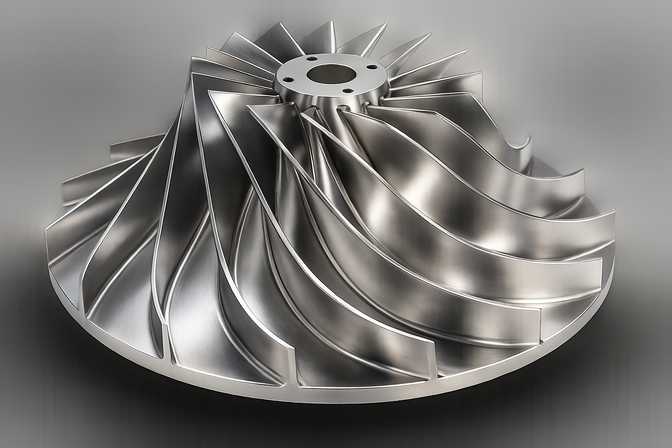

Metal turbine impeller with curved blades radiating from a central hub on a reflective surface.
Rotor of an electric motor showing copper windings and laminated steel core with beige end rings

Optimized Impeller Design

Engineering that Fits Your Application

Every application is different, which is why DT Series blowers are available with both standard and custom-engineered impeller designs. Rather than forcing your process to fit a standard blower configuration, Lone Star Turbo can tailor the impeller to match your exact operating requirements. By optimizing the blower for the application, we help maximize efficiency, improve performance, and deliver greater long-term value over the life of the system.

Expanded Flow Control with DT-X Technology

DT-X models use magnetic bearing technology with variable inlet and discharge guide vanes. This provides a much wider stable operating range than speed control alone. By combining speed control with variable inlet and discharge guide vanes, DT-X systems can provide stable flow and pressure control from 100% down to as low as 35% flow while maintaining a broader peak-efficiency operating area.

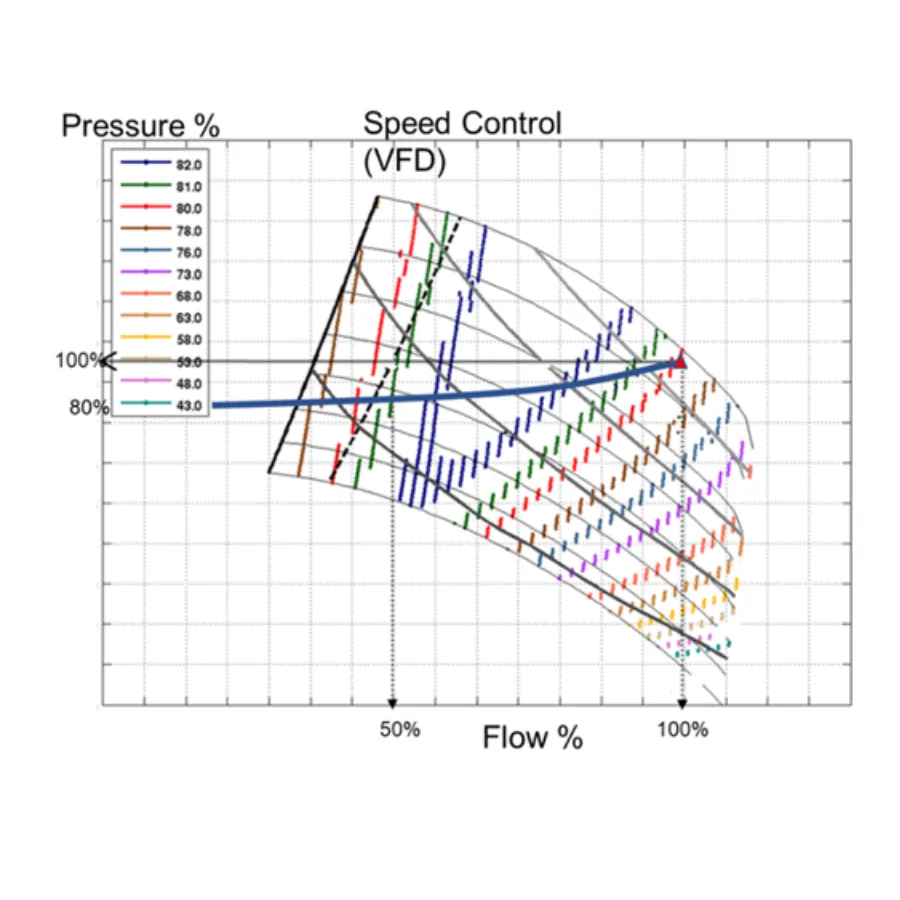

Graph titled 'Speed Control (VFD)' plotting Pressure% (vertical) vs Flow% (horizontal) with multiple colored curves showing performance areas for different settings/percentages.

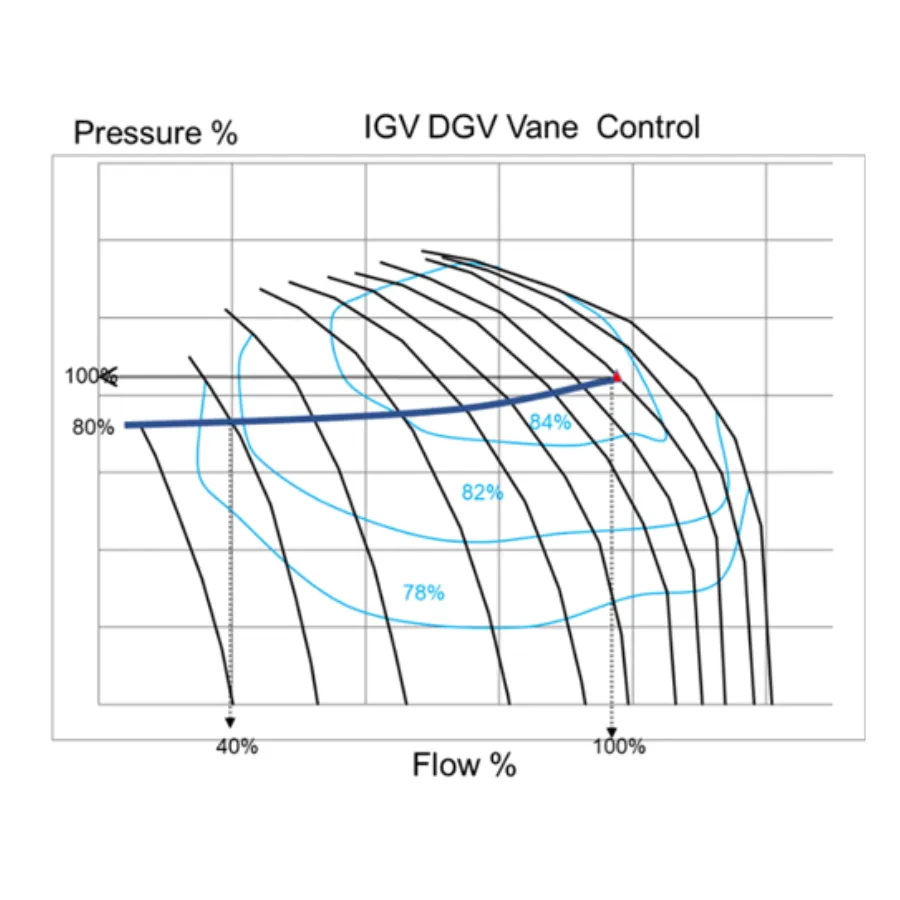

Performance map: flow percent vs. pressure percent for IGV/DGV vane control with blue contour lines labeled 78%, 82%, 84%.
Rotor of an electric motor showing copper windings and laminated steel core with beige end rings

Complete Packaged Systems

All DT Series products are supplied as complete blower packages, including:

  • High-Speed turbo blower
  • Dedicated Variable Frequency Drive
  • Integrated Control System
  • Filtration System
  • Factory-Supported Components
  • Replacement Parts Stocked in Houston, Texas

Lone Star standard control designs are fully supported, and custom control platforms are available, including Allen-Bradley, Siemens, Modicon, and other PLC Brands.

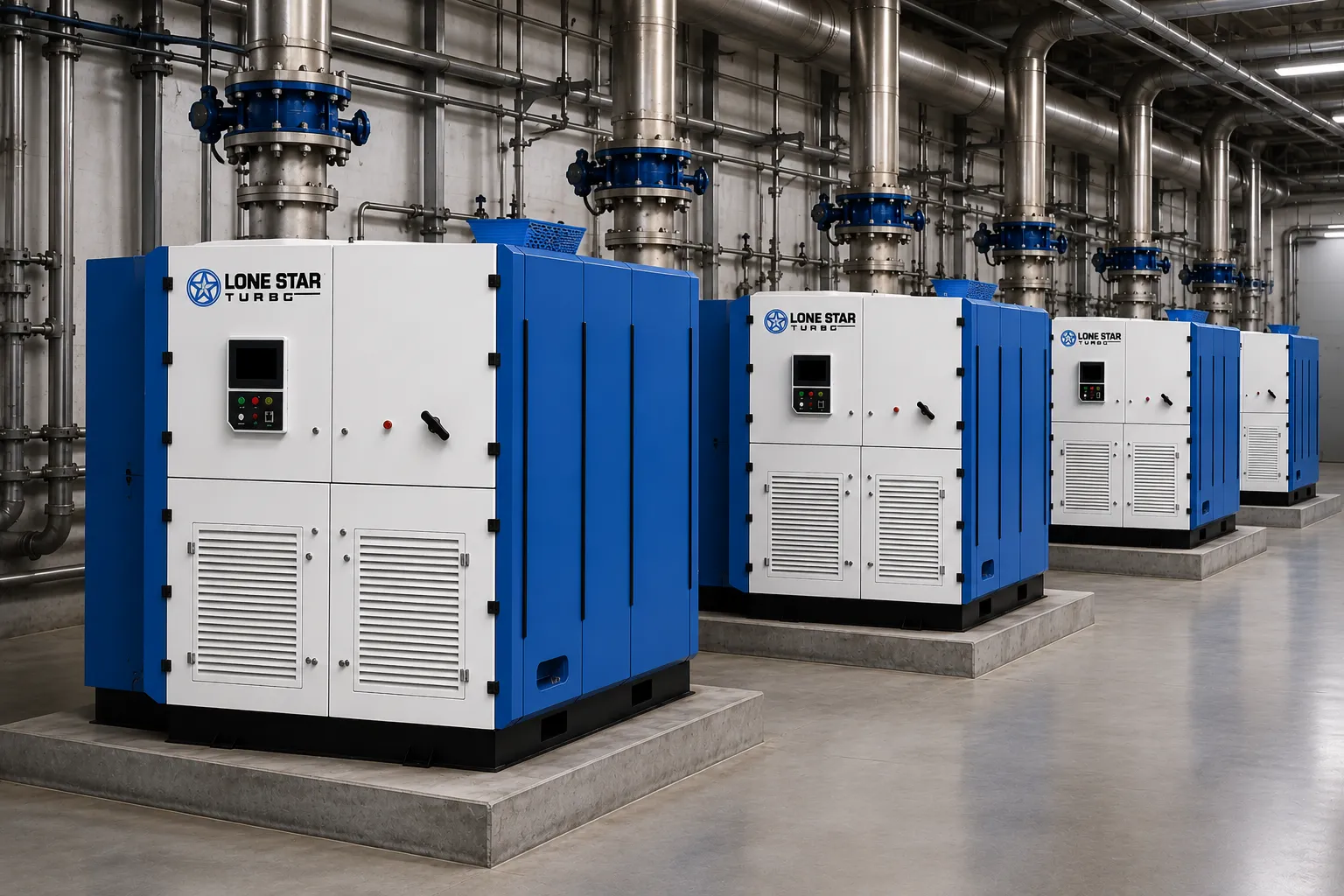

Two Lone Star Turbo industrial generators in a mechanical room, with blue panels and overhead stainless pipes.

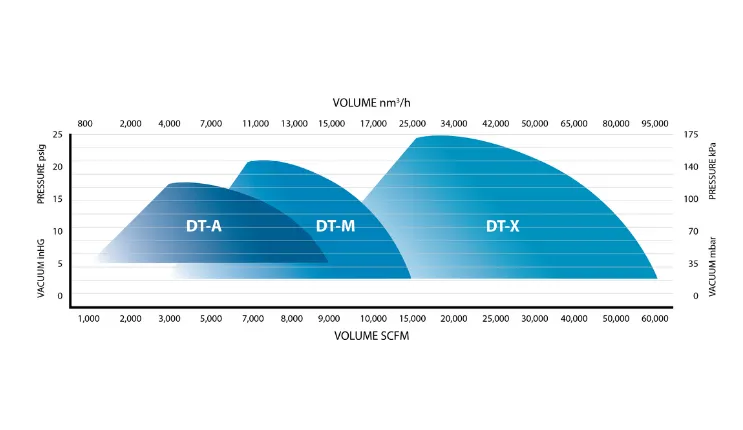

Infographic showing three overlapping curves labeled DT-A, DT-M, and DT-X that depict vacuum pump performance versus volume, with volume on the horizontal axis (SCFM and m3/h) and vacuum/pressure on the vertical axis. The shapes illustrate increasing peak flow for each model.
Rotor of an electric motor showing copper windings and laminated steel core with beige end rings

Model Range

  • DT-A – Air Bearing Turbo Blower
  • DT-M – Magnetic Bearing Turbo Blower
  • DT-X – Magnetic Bearing Turbo Blower with Variable Inlet and Discharge Guide Vanes

Lone Star DT Series turbo blowers are available for applications from approximately 1,000 to 60,000 CFM and up to 25 PSIG.
